Carbon Steel Fasteners
Aztec International offers different types of self-drilling and self-tapping carbon steel screws. The screws are made of 1022 low carbon steel and are case hardened by carburisation process. We offer fasteners with different types of head (e.g. hexagonal, truss, oval or pan head) with different types of recess like Phillips, T20, T25 and TORX® ttap®.
Carbon steel is a popular material for fasteners due to its good tensile strength and ability to bear loads. It can be heat-treated, easily modifying it’s mechanical properties. It is easy to machine and can meet the tight tolerances required in fastener construction. All of our fasteners are protected against corrosion. Available coatings are zinc or zinc-nickel.
Carbon steel is categorized by the amount of carbon in the alloy, which impacts the properties of the steel.
Low carbon steel, with 0.05-0.3% carbon, is ductile and malleable. It has low tensile strength and can be hardened through carbonizing. It is the least expense of the carbon steel alloys.
Medium carbon steel has 0.3-0.59% carbon, which provides the alloy with increased strength and good wear resistance. It is easy to machine and is used for forged parts and in automotive industry.
High carbon steel is very strong and is used for springs and high-strength products. These alloys can be tempered to very high hardness, and are used for high wear applications. These alloys have carbon content from 0.6-0.99% for high carbon steel and 1.0-2.0% for ultra-high carbon steel.
Our fasteners can be powder coated in any colour.
Don’t see the product you are looking for? Please Contact Sales Department.
SCREWS for fixing metal to metal
Hexagonal head self drilling STITCHER screw with reduced drill point
GA2 - 4.8 x L
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
4.8 |
20 |
8 |
5 |
1+1 |
14 |
GA2-4,8 X L are hexagonal head carbon steel stitcher screws made out of case hardened, zinc-plated 1022 carbon steel. These screws are used for fastening two thin, overlapping metal sheets together with or without a bonded washer. Non-threaded part under the head provides secure side lap stitching of the sheets and prevents stripping of the screw and a destruction of the sealing washer or joined elements.

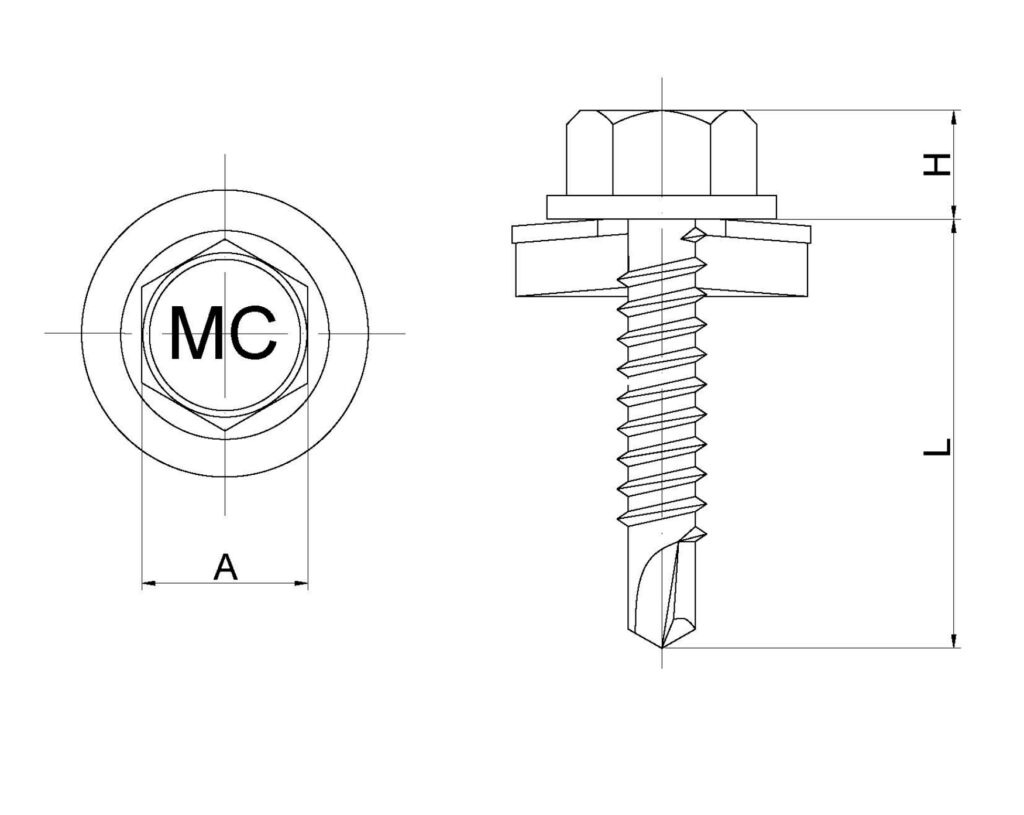

Hexagonal head self drilling screw with no. 3 drill point
GA3 - 4.8 x L
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
4.8 |
19 |
8 |
5 |
1.5+1.5 |
14 |
GA3-4,8 X L are hexagonal head carbon steel screws made out of case hardened, zinc-plated 1022 carbon steel. These screws are used for fastening two metal sheets together with or without a bonded washer.
Hexagonal head self drilling screw with no. 3 drill point
GA5 - 5.5 x L
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
5.5 |
25 |
8 |
5 |
< 5 |
16 |
|
5.5 |
75 |
8 |
5 |
< 5 |
16 |
GA5-5,5 X L are hexagonal head carbon steel screws made out of case hardened, zinc plated 1022 carbon steel. These screws have great drilling capabilities and can be used for fixing metal members and sheets to steel supporting structures.
wafer head phillips self drilling screw
FH-GA3 - 4.2 x L
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
4.2 |
16 |
11 |
2.3 |
1.5+1.5 |
– |
|
4.2 |
25 |
11 |
2.3 |
1.5+1.5 |
– |
FH-GA3-4,2 X L are wafer head carbon steel screws made out of case hardened, zinc-plated 1022 carbon steel. These screws are used for fastening two metal sheets together, especially useful when in need of a low profile head solution or increased aesthetic value.
Oval head TORX® ttap® self drilling stitcher screw with reduced drill point
ga2 - 4.8 x L oval
| Ø [mm] | L [mm] | A [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|
|
4.8 |
20 |
14 |
1+1 |
10 |
GA2-4,8 x L OVAL are oval head carbon steel stitcher screws with TORX® ttap® T25 recess. They are made out of case hardened, zinc-plated 1022 carbon steel. These screws are used for fastening two thin, overlapping metal sheets together with the use of EPDM sealing washer, especially useful when in need of a low profile head solution or increased aesthetic value.
Oval head TORX® ttap® self drilling screw with no. 3 drill point
ga3 - 4.8 x L oval
| Ø [mm] | L [mm] | A [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|
|
4.8 |
19 |
14 |
1.5+1.5 |
10 |
GA3-4,8 x L OVAL
are oval head carbon steel screws with TORX® ttap® T25 recess. They are made
out of case hardened, zinc-plated 1022 carbon steel. These screws are used for
fastening two metal sheets together with the use of EPDM sealing washer,
especially useful when in need of a low profile head solution or increased
aesthetic value.
Oval head TORX® ttap® self drilling screw with no. 3 drill point
ga5 - 5.5 x L oval
| Ø [mm] | L [mm] | A [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|
|
5.5 |
25 |
14 |
< 5 |
10 |
GA5-5,5 x L OVAL
are oval head carbon steel screws with TORX® ttap® T25 recess. They are made
out of case hardened, zinc-plated 1022 carbon steel. With their increased
drilling performance they can be used for fixing metal sheets and members to
steel supporting structures with the use of EPDM sealing washer, while
retaining advantages of low profile head design.
SCREWS for fixing metal to timber
Hexagonal head self drilling farmer screw with no. 2 reduced drill point
FS - 4.8 x L
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
4.8 |
28 |
8 |
5 |
1.5 |
14 |
|
4.8 |
35 |
8 |
5 |
1.5 |
14 |
|
4.8 |
60 |
8 |
5 |
1.5 |
14 |
|
4.8 |
80 |
8 |
5 |
1.5 |
14 |
FS-4,8 X L are hexagonal head carbon steel screws made out of case hardened, zinc-plated 1022 carbon steel. These screws are used for fastening metal sheets to timber supporting structures with or without a bonded washer.
Hexagonal head self tapping screw with sharp point
SP - 4.8 x L
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Effective clamping thicknesss [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|---|
|
4.8 |
25 |
8 |
5 |
1 |
– |
14 |
|
4.8 |
38 |
8 |
5 |
1 |
– |
14 |
|
4.8 |
50 |
8 |
5 |
1 |
15 |
14 |
|
4.8 |
65 |
8 |
5 |
1 |
20 |
14 |
|
4.8 |
80 |
8 |
5 |
1 |
25 |
14 |
|
4.8 |
105 |
8 |
5 |
1 |
45 |
14 |
SP-4,8 X L are hexagonal head carbon steel self-tapping screws with sharp point made out of case hardened, zinc-plated 1022 carbon steel. These screws can be used to fix thin metal sheets to timber supporting structures with or without a bonded washer.
Hexagonal head self drilling screw with wings
FS - 4.8 x L WING
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
4.8 |
35 |
8 |
5 |
1.5 |
16 |
FS-4,8 X L WING are hexagonal head self-drilling screws made out of case hardened, zinc plated 1022 carbon steel. In normal operating conditions there are many forces acting on the sheeting. Wings are used to ream a bigger hole in the sheet material and prevent excessive stress at the place of fixing that could cause damage to the sheet. These screws can be used to fix sheets made out either thin metal of softer materials to timber supporting structures.

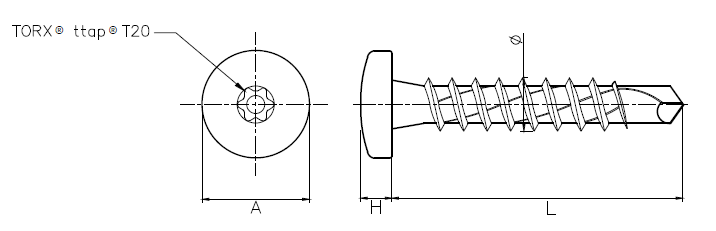

STR Pan head TORX® ttap® self drilling screw
fs - 5.0 x l pan
| Ø [mm] | L [mm] | A [mm] | H [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|---|
|
5.0 |
20 |
9 |
2.5 |
1.5 |
– |
|
5.0 |
25 |
9 |
2.5 |
1.5 |
– |
|
5.0 |
35 |
9 |
2.5 |
1.5 |
– |
|
5.0 |
65 |
9 |
2.5 |
1.5 |
– |
|
5.0 |
80 |
9 |
2.5 |
1.5 |
– |
FS-5,0 X L PAN are pan head self-drilling screws with TORX® ttap® T20 recess, made out of case hardened, zinc-plated 1022 carbon steel. These screws are used for fastening metal sheets to timber supporting structures, especially useful when in need of a low profile head solution or increased aesthetic value.
Oval head TORX® ttap® self drilling screw with no. 2 reduced drill point
FS - 4.8 x L oval
| Ø [mm] | L [mm] | A [mm] | Drilling capacity [mm] | Washer Ø [mm] |
|---|---|---|---|---|
|
4.8 |
28 |
14 |
1.5 |
10 |
|
4.8 |
35 |
14 |
1.5 |
10 |
|
4.8 |
60 |
14 |
1.5 |
10 |
FS-4,8 X L OVAL are oval head self-drilling screws with TORX® ttap® T25 recess, made out of case hardened, zinc-plated of 1022 carbon steel. These screws are used for fastening two metal sheets together with the use of EPDM sealing washer, especially useful when in need of a low profile head solution or increased aesthetic value.
